EM-348-48V-SPF DC Motor Controller with Modbus RS485

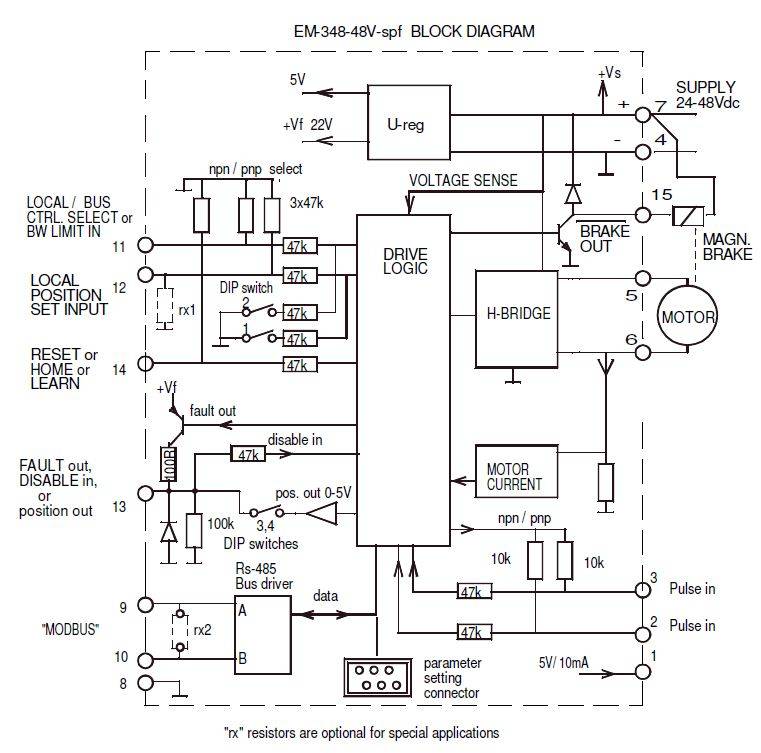

EM-348-48V is a full bridge DC-motor starter. It is designed to work with DC-motor in applications where some special functions are needed. Starter has adjustable acceleration and deceleration ramps, which make possible the smooth starts and stops. Adjustable current limit protects motor against overcurrent and it can also be used as an end-stop. Driver has two selectable pwm frequency 2 or 16kHz. Power stage has smoothed switching technique which is achieved very low RF emissions, so external filter will not needed.
Driver has also external brake output which can be used for control magnetic brake or braking resistor in regenerative braking.
This card has integrated Rs-485 bus, with this bus can be control and monitoring driver and also the parameter of driver can be set with bus. This interface has as a standard Modbus RTU protocol. This bus makes possible to connected several cards under one control unit. Card has also two multifuntion control inputs, which can be set for digital or analog mode, depends on used firmware. This card has available with several firmware version for different applications. There is two program version for basic drive and positioning control. Card can be used with pulse or analog feedback from motor. The card has selectable input logics. Inputs are divided in two groups, control and limit /pulse -inputs. These groups can be individually set for NPN or PNP logic.
The parameter setting and monitoring can be done with Modbus or EM-236 interface unit, EM-328 with EmenTool-Lite PC-program. The Program updates domen with EmenTool.


TECHNICAL DATA (EM-348-48V, Prog. -SPF v1.8)

Supply voltage (continuous, max.)20-55V
Overvoltage limit (adjustable)15-65V
Start-up voltage9V
Shutdown voltage8V
Continuous current output (@ 15°C ambient)10A at 100% speed / 7A at 5-99% speed (PWM = 2kHz)
7A at 100% speed / 4A at 5-99% speed (PWM = 16kHz)
Peak current (5s)30A at 2kHz PWM, 25A at 16kHz PWM
Current limit (adjustable)0.1-25A (Max. 30A at start)
Overheat limit100°C
Start/stop ramp (adjustable)0-5s
PWM frequency2kHz / 16kHz
Analog inputs (pin 11 and 12)0-5V or 0-10V
Input control logicHigh = 4-30V, Low = 0-1V
Control input impedanceTyp. 47kΩ
Limit/pulse input (pin 2 and 3) impedanceTyp. 10kΩ
Control input response timeTyp. 5ms
Fault output (PNP open collector)22V / Max. 20mA
Brake output (NPN open collector)Max. 55V / 1.5A
Disable input (active)Uin > 4V (PNP)
Bus communicationRS-485, two-wire half-duplex, 9600 kbps
Motor and supply connectors2.5mm²
Control connectors1mm²
Dimensions42 x 72 x 25mm (6A version: 18mm height)
Dimensions (DIN-rail base)45 x 80 x 45mm
CE-tested for industrial environment (EMC)Yes
Operating temperature (Ta)-40...60°C
Weight75g (6A version: 48g)

Product files

Modbus_common_part_10.2.2021.pdf (393,18 KB)
Modbus_SPF_25.9.2018.pdf (24,33 KB)
EN_em-Rail_bases.pdf (2 833,53 KB)
